Description
Product description
Brief Introduction:
Air end: German Technology. 30 years designed lifetime.
Motor: 100% rare earth permanent magnet motor.

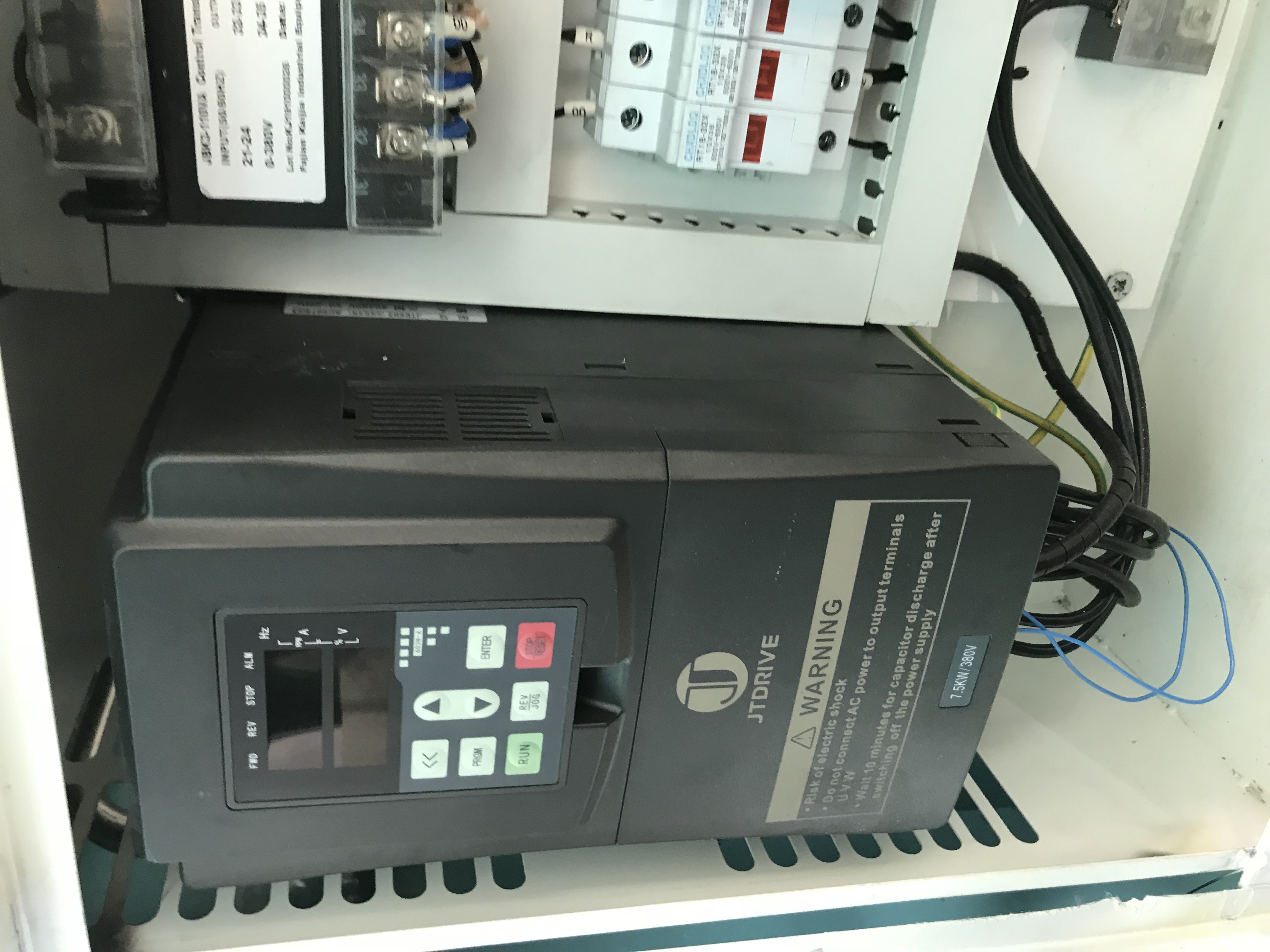

Inverter: Chinese No. 1 inverter can save 30% energy.
Warranty: 5 years for the air end, and 2 years for the whole compressor.
Delivery time: 7-15 days.
After-sales service:we have our professional after-sales technician to instruct the installation of the whole screw air compressor.
We offer free pipe and valves for installation and installation diagram

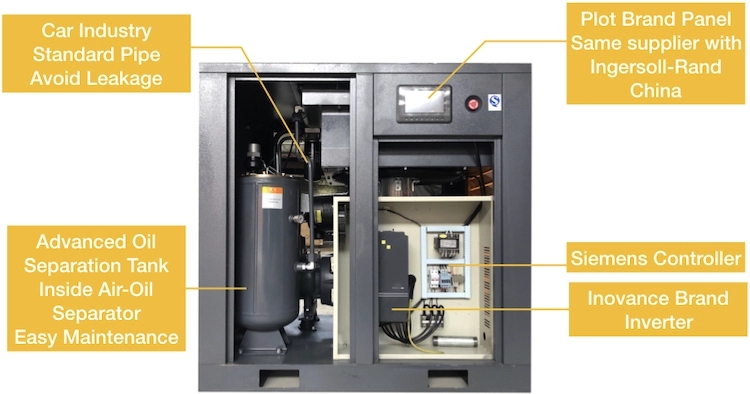

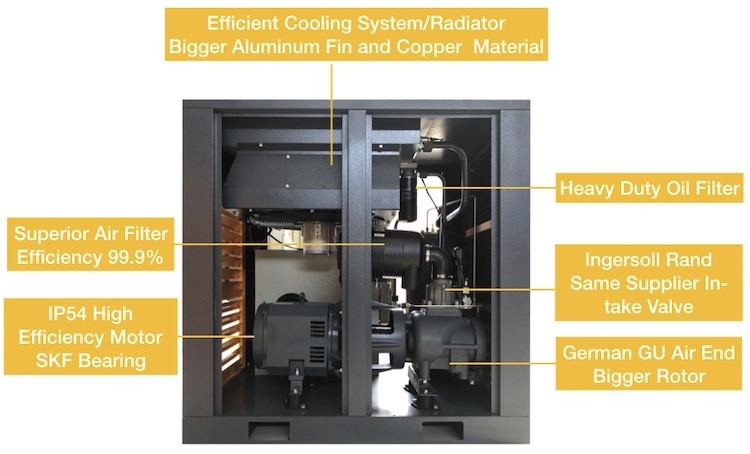

Advantages
1. Air end of screw air compressor
The air end is with state-of-the art screw element and 4 -6 SKF bearings to make sure it plenty of air output and longer lifetime.
2.Electric Motor of the air compressor
Name brand qualified IP54 ,F insulation, IE2 , IE3 motor , high efficiency and energy saving.
3. Intake valve of the screw air compressor
High efficiency intake valve protects the compressor components by removing 99% dirty particles down to 3 microns.
4. Oil Air separator
High efficiency separating for oil and air and low oil content in the compressed air.
5. Touch Screen Controller.
6. High efficient Centrifugal fan can give best cooling for screw compressor.

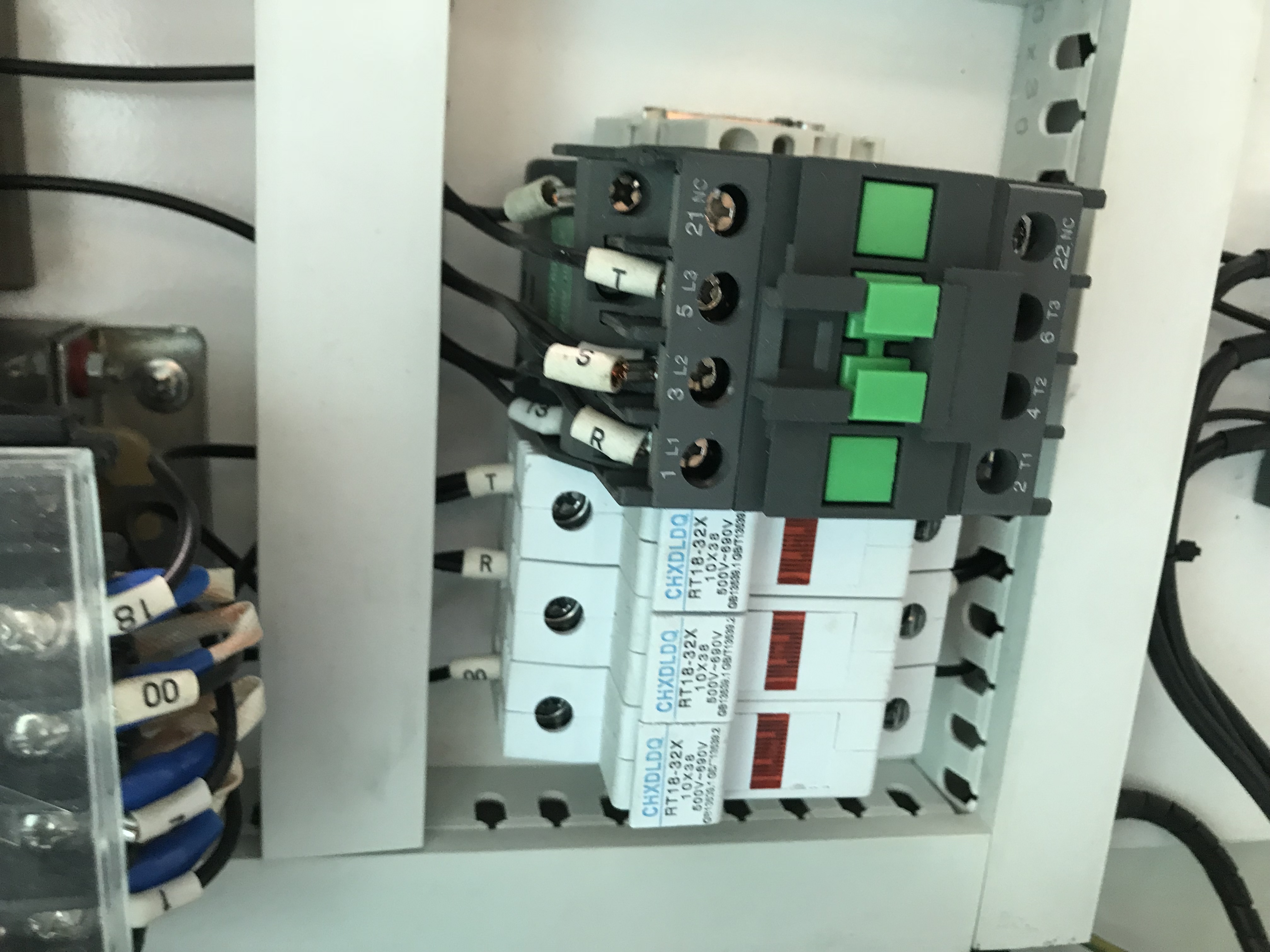

7.Dust proof mesh to protect electrical control system
Technical Specifications of screw air compressor
Model
Air Flow (m³/min)
Motor Power
Noise
Outlet Diameter
Dimension
Weight
7bar
8bar
10bar
13bar
kw
dB
inch
W*D*H (mm)
kg
YP-10A
1.1
1.0
0.85
0.7
7.5
65
G1''
960*680*960
280
YP-15A
1.8
1.65
1.5
1.3
11
65
G1''
1050*830*1240
380
YP-20A
2.4
2.2
2.1
1.8
15
68
G1''
1050*830*1240
380
YP-25A
3.1
3.0
2.7
2.3
18.5
68
G1''
1200*830*1290
480
YP-30A
3.8
3.6
3.2
2.5
22
68
G1''
1200*830*1290
480
YP-40A
5.3
5.0
4.3
3.6
30
69
G11/2''
1300*1000*1540
710
YP-50A
6.6
6.2
5.7
4.6
37
69
G11/2''
1300*1000*1540
710
YP-60A
8.0
7.7
6.9
6.0
45
70
G11/2''
1500*1160*1700
990
YP-75A
10.5
9.8
8.7
7.3
55
70
G11/2''
1500*1160*1700
990
YP-100A
13.6
13.0
11.3
10.1
75
72
G2''
1700*1180*1800
1300
YP-125A
16.2
15.4
13.2
11.2
90
72
DN50
1850*1200*1900
1400
YP-150A
20.8
19.5
16.5
13.7
110
73
DN65
2250*1260*2055
1560
Remarks:
1. working ambinent temperature: -5℃-45℃;
2. exhausting air temperature ≤ working ambinent temperature +10℃-15℃;
3. starting mode: Y-△;
4. exhausting oil content: ＜3ppm;
5. certificate: CE/ISO9001/ASME;
6. voltage: 380V/220V/400V/440V/415V
Our Factory:
1. Starting from 2001;
2. With 8,000sq meters workshop;
3. With 6 production lines;
4. 500pcs production capacity per month
Our Certificates:
1. CE;
2. SGS;
3. ISO9001;
4. 12 patents for screw compressor.
1. Screw air compressors are exported to 132 countries and regions all over the world;
2. All indicators of screw air compressor are stable and the failure rate is low;
3. Perfect after-sales service system, engineers on duty 24 hours a day to provide one-on-one service to customers at the air compressor use site.
Pre-factory quality control process:
1.Installation inspection of the whole air compressor: check and confirm the whole machine according to the operation instructions and quality control standards. Main inspection items:
A . Confirm the nose and motor nameplates;
B . Check whether there is oil leakage in the pipeline and oil circuit of the air compressor; C . the air compressor machine screw locking inspection..
2. air compressor factory test machine, heat engine: test whether the air compressor operation parameters meet the requirements of customers, including voltage, current, working pressure, exhaust volume, etc.Air compressor factory before 48 hours of thermal test, stability confirmation.
3. 24 hours online after-sales service, one-to-one online guidance installation, debugging, troubleshooting.
1. Screw air compressor packaging is divided into three layers from inside to outside:
1) The first layer of protection: spray paint on the surface of the machine to protect the surface of the machine. The fouling pull film is wrapped around the surface of the machine to protect the surface of the paint.
2) The second layer of protection: anti-collision protection of the machine. On the basis of lacquer protection, anti-collision buffer cotton is used to protect the machine against collision.
3) The third layer of protection: the case adopts the overall packaging of the non-fumigation wooden case to protect the machine during transportation.
