Description

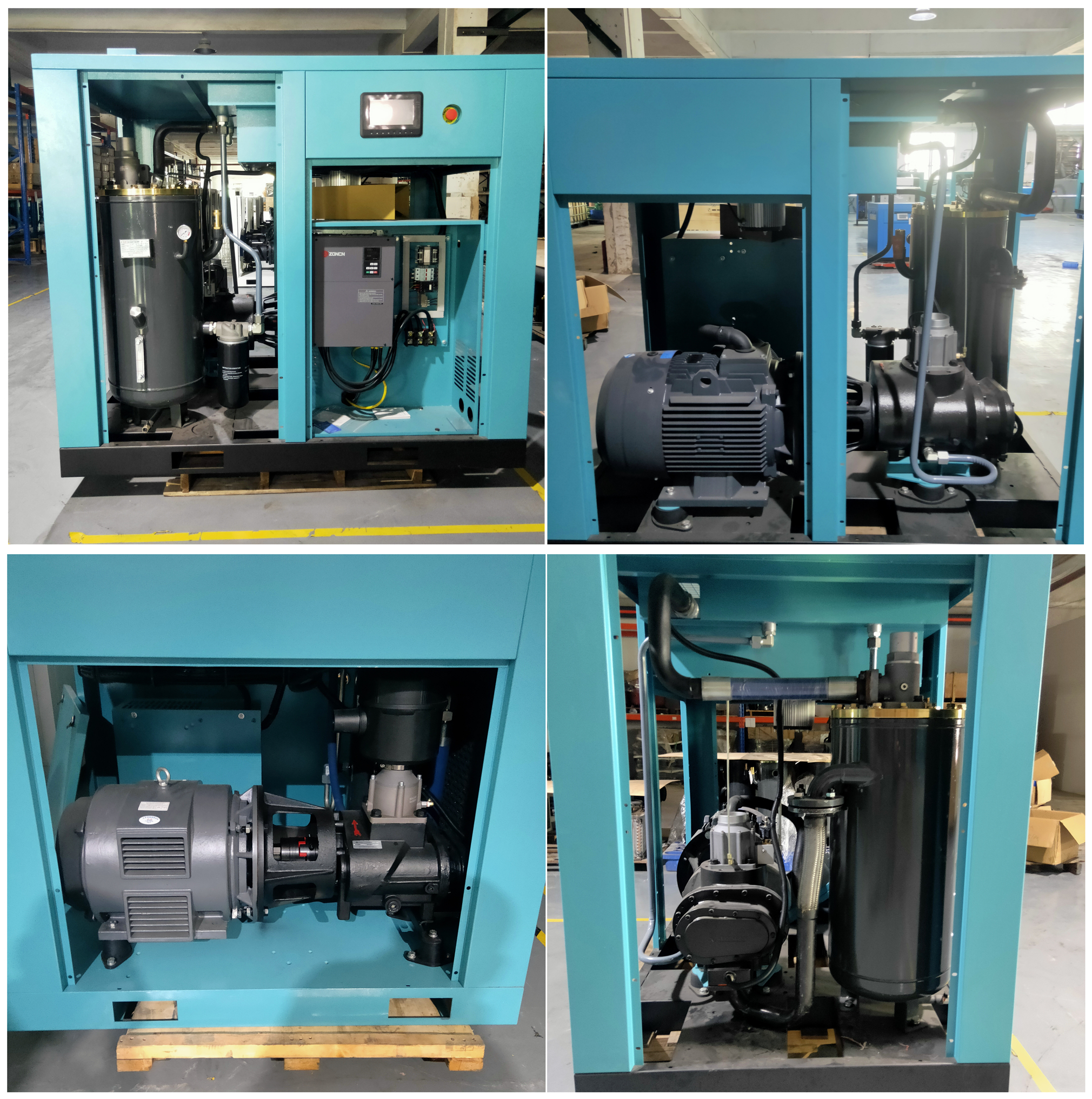

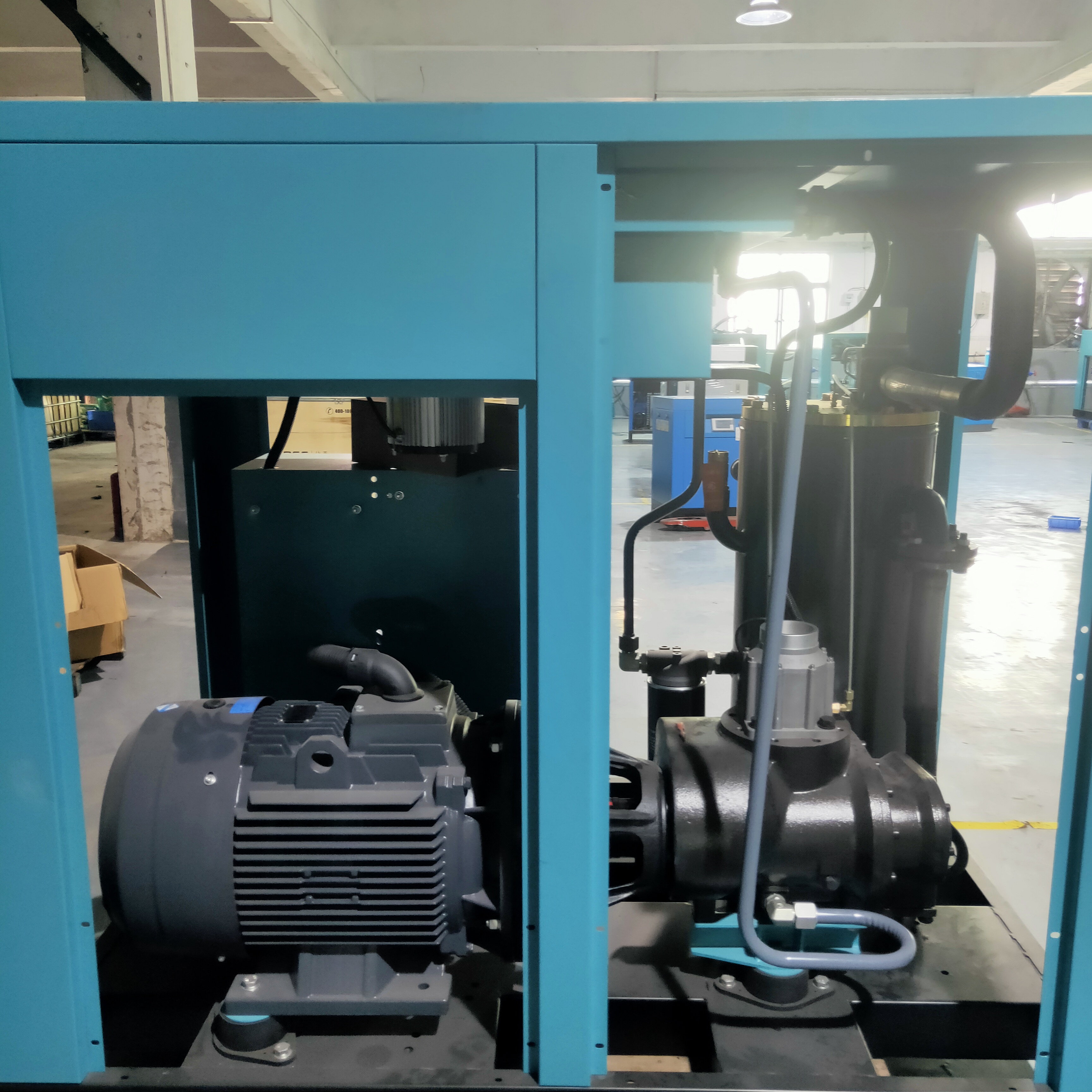

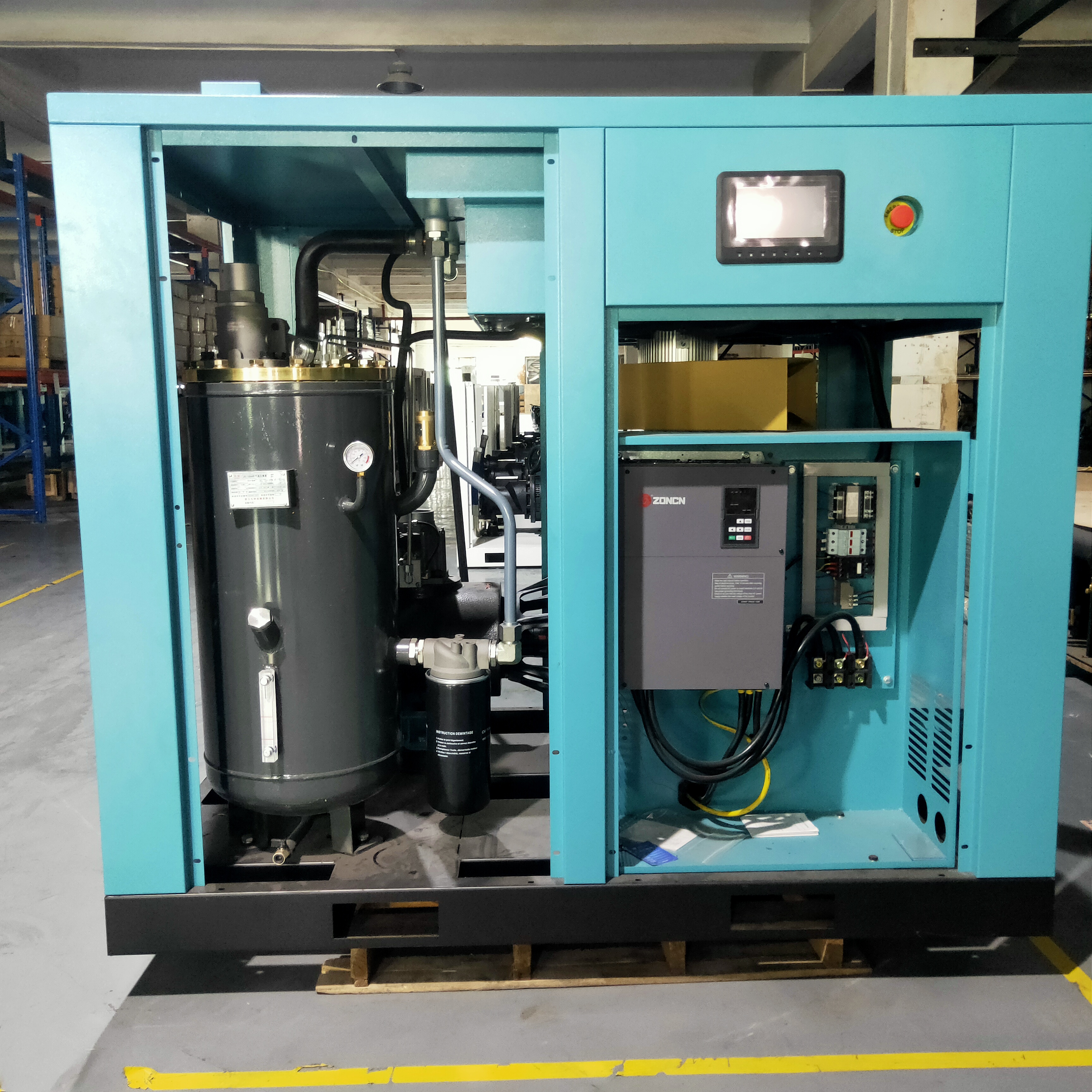

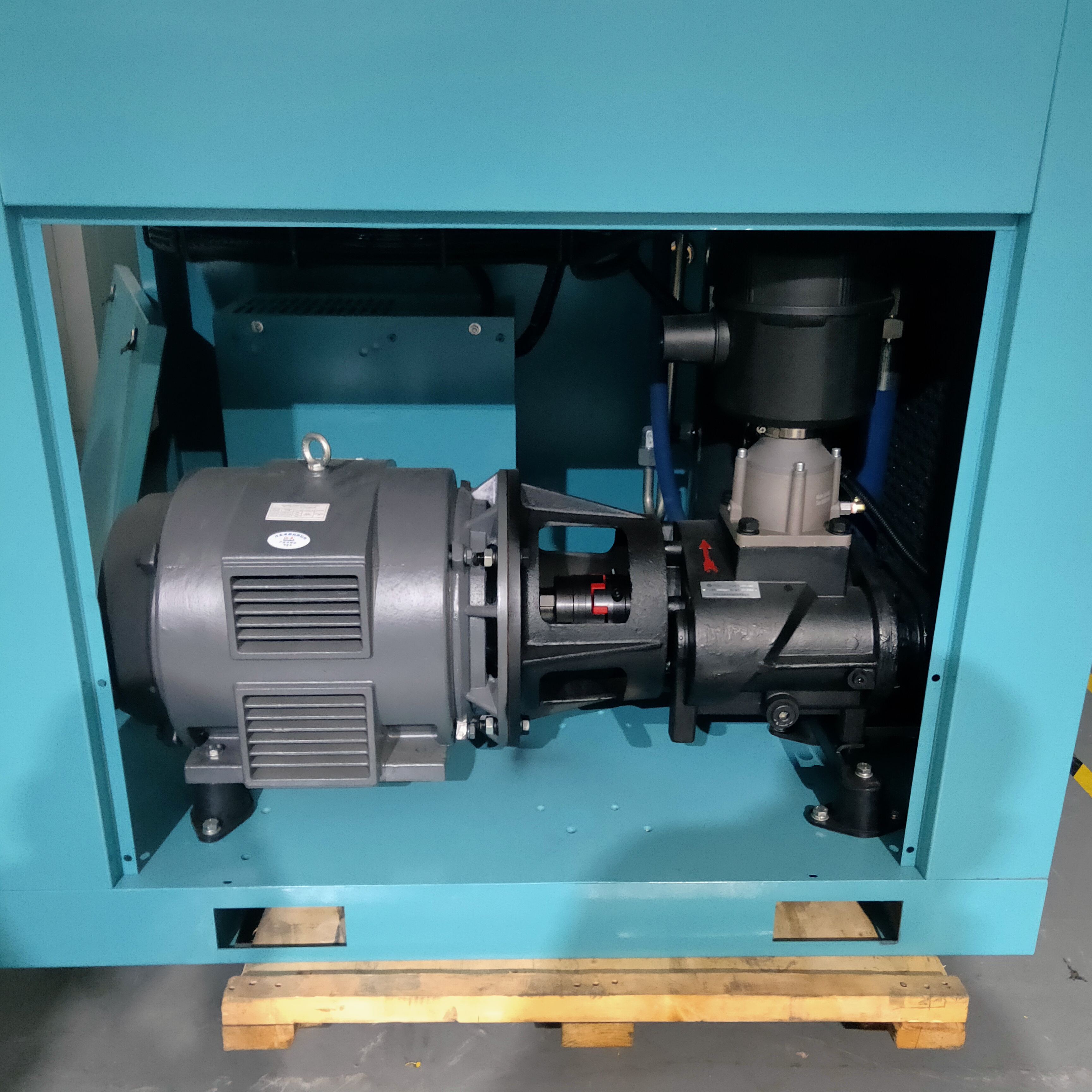

Product description of Y-Air 22kW 30hp 7bar Factory Manufacturer Germany Host IE4 High Efficiency Low Speed PM VSD One Stage Screw Air Compressor
Brief Introduction:
Air end: Germany Technology. 30 years designed lifetime.
Motor: 100% rare earth permanent magnet motor.
Inverter: Chinese No. 1 inverter can save 30% energy.
Warranty: 5 years for the air end, and 2 years for the whole compressor.
Delivery time: 7-15 days.
After-sales service:we have our professional after-sales technician to instruct the installation of the whole screw air compressor.
Certificate: CE/SGS/ISO9001/ASME
We offer free pipe and valves for installation and installation diagram
|

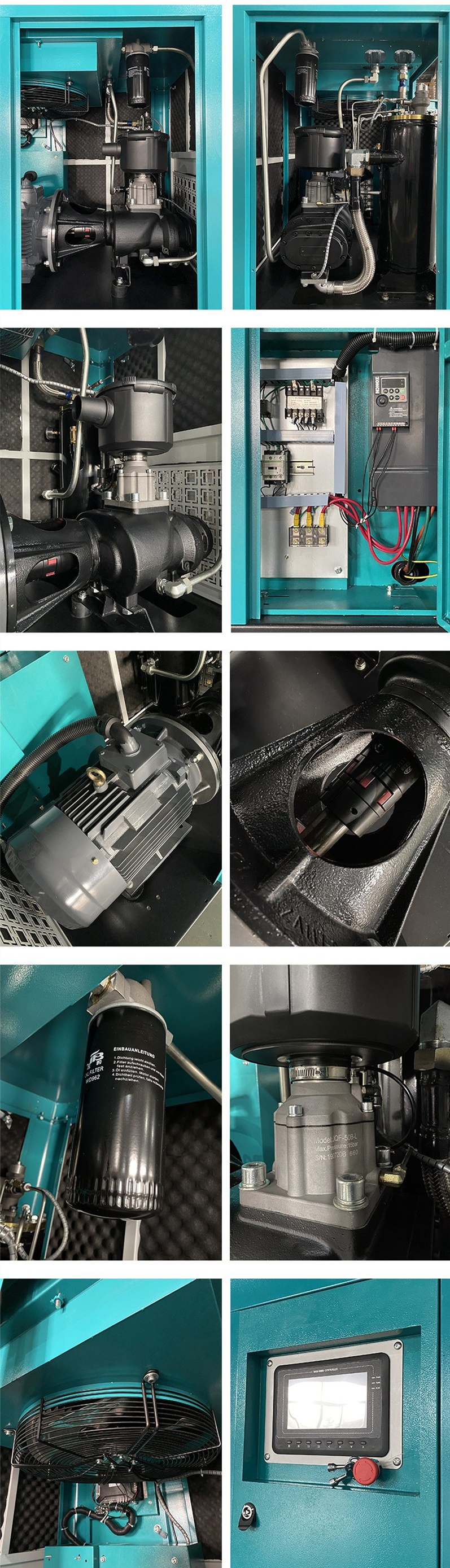

Screw Air Compressor Main Configuration |
||
|
Item |
Parts |
Brand |
|
1 |
Air end |
BAOSI/GU(Germany origin) |
|
2 |
Intake Valve |
Red star(Chian) |
|
3 |
Solenoid Valve |
CEME (Italy) |
|
4 |
Temperature sensor |
Red star (China) |
|
5 |
Pressure sensor |
Huba original (from Switzerland) |
|
6 |
Motor |
Jiangtian Motor( China) |
|
7 |
Coupling |
Germany KTR |
|
8 |
Thermostat Valve |
Italy VMC |
|
9 |
PLC |
MAM6080 MAM880 MAM860 |
|
10 |
Minimal Pressure Valve |
Red star(Chian) |
|
11 |
Air filter element |
Germany MANN |
|
12 |
Oil filter element |
Germany MANN |
|
13 |
Oil separator element |
Germany MANN |
|
14 |
Bearing |
Sweden SKF |
Main technical parameters of Y-Air 22kW 30hp 7bar Factory Manufacturer Germany Host IE4 High Efficiency Low Speed PM VSD One Stage Screw Air Compressor
Model
Air Flow (m³/min)
Motor Power
Noise
Outlet Diameter
Dimension
Weight
7bar
8bar
10bar
13bar
kw
dB
inch
W*D*H (mm)
kg
YP-10A
1.1
1.0
0.85
0.7
7.5
65
G1''
960*680*960
280
YP-15A
1.8
1.65
1.5
1.3
11
65
G1''
1050*830*1240
380
YP-20A
2.4
2.2
2.1
1.8
15
68
G1''
1050*830*1240
380
YP-25A
3.1
3.0
2.7
2.3
18.5
68
G1''
1200*830*1290
480
YP-30A
3.8
3.6
3.2
2.5
22
68
G1''
1200*830*1290
480
YP-40A
5.3
5.0
4.3
3.6
30
69
G11/2''
1300*1000*1540
710
YP-50A
6.6
6.2
5.7
4.6
37
69
G11/2''
1300*1000*1540
710
YP-60A
8.0
7.7
6.9
6.0
45
70
G11/2''
1500*1160*1700
990
YP-75A
10.5
9.8
8.7
7.3
55
70
G11/2''
1500*1160*1700
990
YP-100A
13.6
13.0
11.3
10.1
75
72
G2''
1700*1180*1800
1300
YP-125A
16.2
15.4
13.2
11.2
90
72
DN50
1850*1200*1900
1400
YP-150A
20.8
19.5
16.5
13.7
110
73
DN65
2250*1260*2055
1560
Remarks:
1. working ambinent temperature: -5℃-45℃;
2. exhausting air temperature ≤ working ambinent temperature +10℃-15℃;
3. starting mode: Y-△;
4. exhausting oil content: ＜3ppm;
5. certificate: CE/ISO9001/ASME/SGS;
6. voltage: 380V/220V/230V/400V/440V/415V
Product Advantage of Y-Air 22kW 30hp 7bar Factory Manufacturer Germany Host IE4 High Efficiency Low Speed PM VSD One Stage Screw Air Compressor
1.New generation of highly efficient imported host machine
2.Highly efficient permanent magnetic motor
3.SKF bearing
4.Highly efficient magnetic steel of permanent magnetic motor

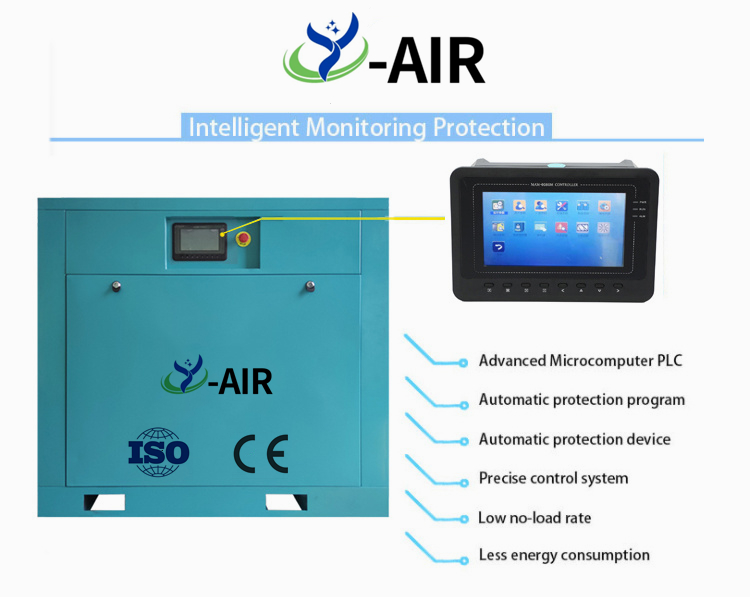

5.Intelligent microcomputer control system
6.Energy-saving air inlet control system
7.Highly efficient cooling system
8.Highly efficient professional filtering system
