Description
2.4-50 m3/min Screw air compressor with adsorption dryer machine

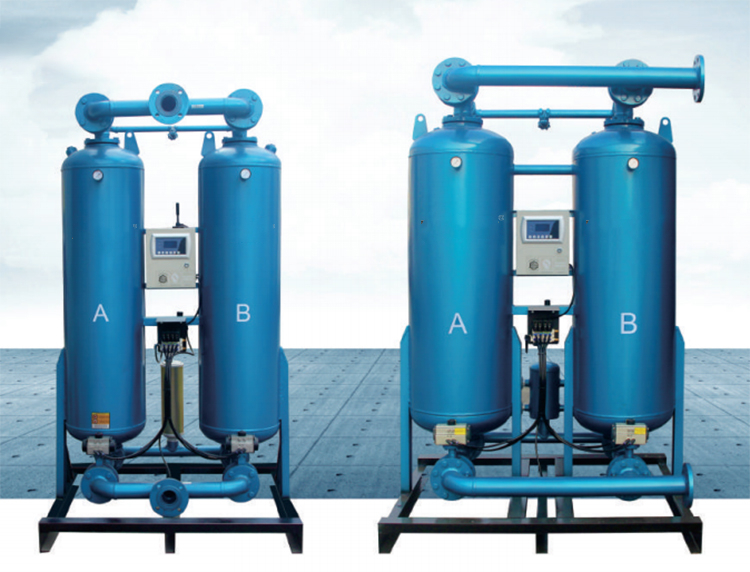

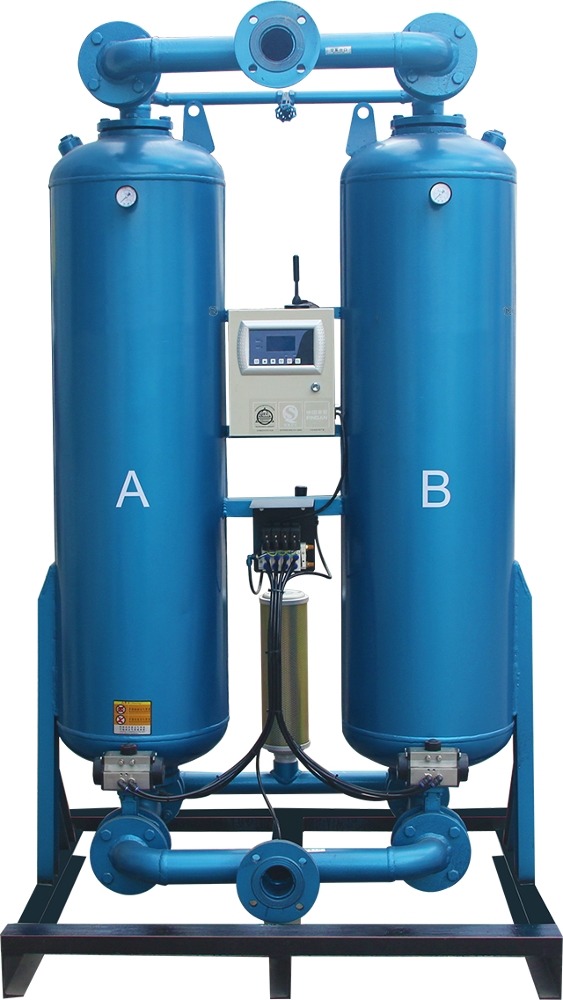

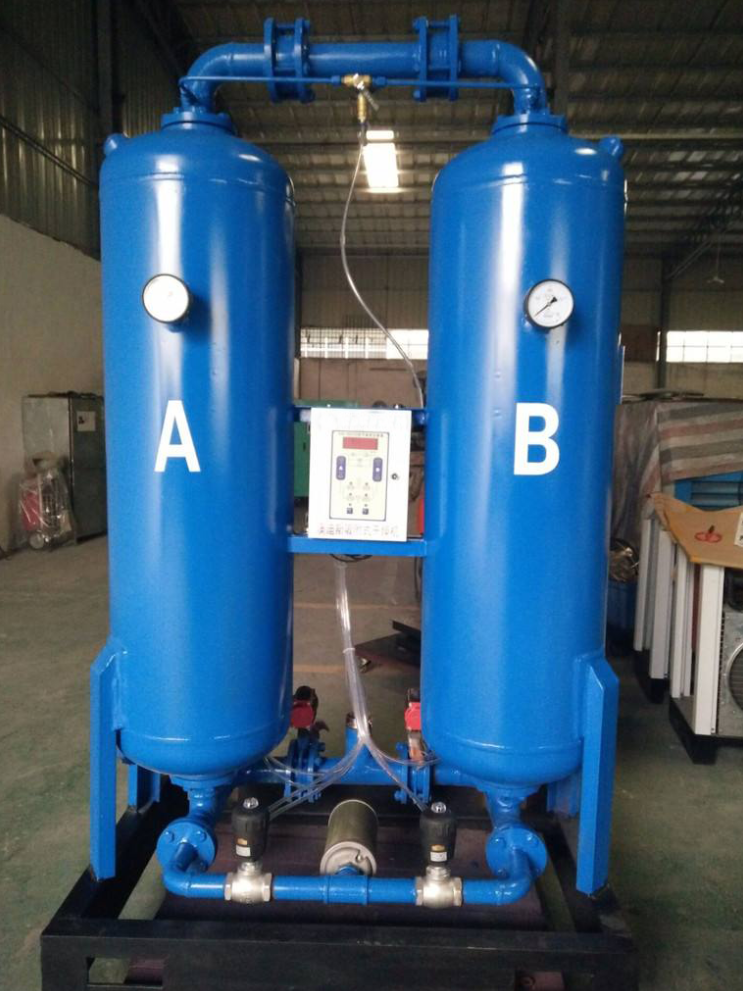

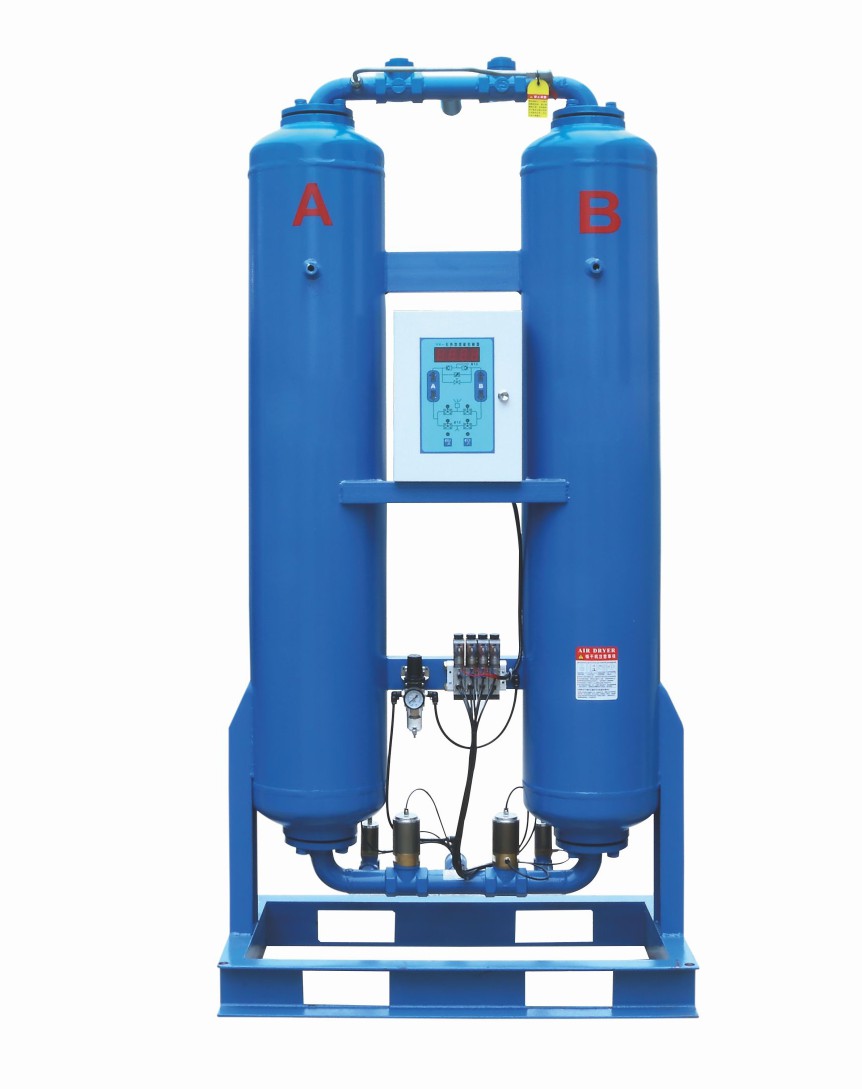

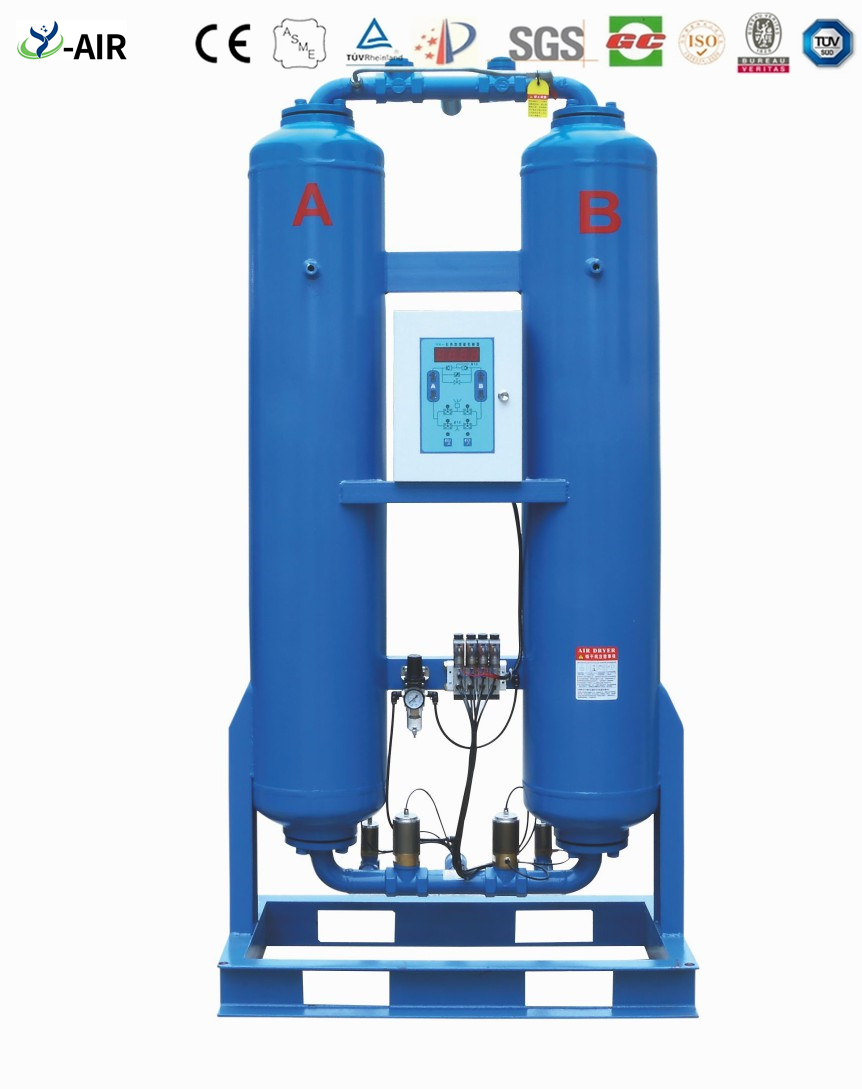

1. Desiccant Air Dryer
Brief Introduction
The desiccant air dryer achieve the drying effect by "pressure change" (pressure change desiccant principle). Since the air's ability to hold water vapor is inversely proportional to the pressure, a portion of the dried air (called regeneration gas) is decompressed and expanded to high pressure. This pressure change causes the expanded air to become drier and then flows through the unconnected air stream. The desiccant layer to be regenerated (ie, the drying tower that has absorbed enough water vapor), the dried regeneration gas sucks out the moisture in the desiccant and takes it out of the dryer to achieve the purpose of dehumidification. The two towers work cyclically, eliminating the need for a heat source and continuously providing dry compressed air to the user's gas system.

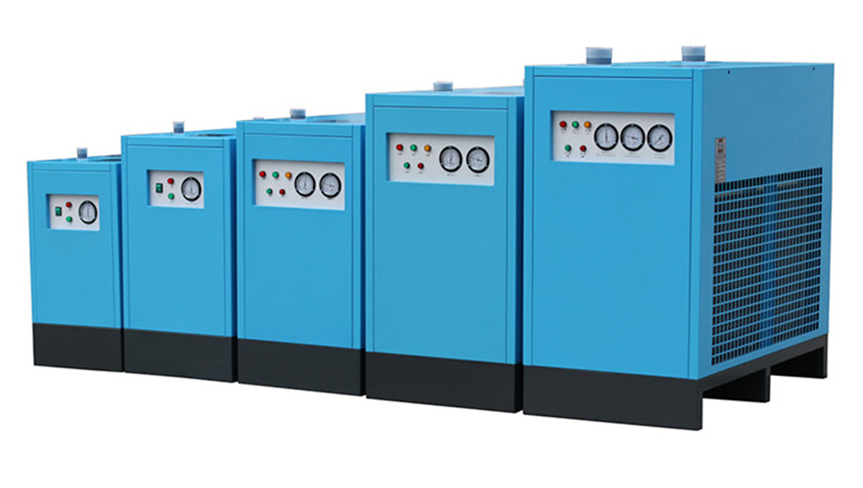

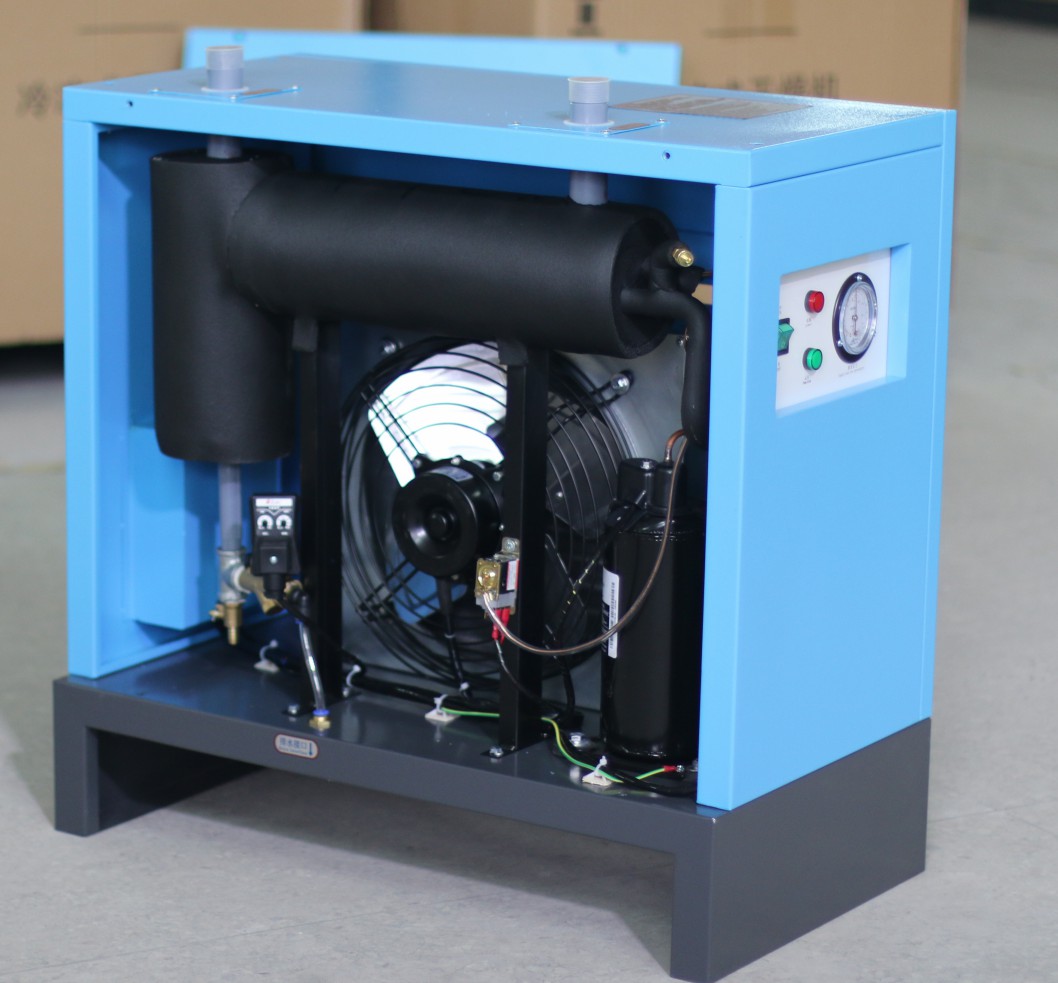

2. Refrigerated Air Dryer Features
Model
Air
Capacity
Compressor Power
Inlet
Temp.
Working
Pressure
Ambient
Temp.
Voltage
outlet
dew point
Pipe Diameter
Dimension
Weight
m³/min
hp
ºC
bar
ºC
V
ºC
inch
W*D*H (mm)
kg
DAD-20 (LH)
2.4
0.5
≤65
6-10
5-40
220
-20~-70
DN20
500*400*1930
305
DAD-30 (LH)
3.6
0.75
DN25
600*560*1930
320
DAD-50 (LH)
5.0
1.25
DN40
600*560*1930
491
DAD-70 (LH)
7.5
1.5
DN40
600*720*1930
495
DAD-100 (LH)
10.0
2.5
DN50
720*880*1930
500
DAD-120 (LH)
12.5
3
DN65
720*1060*1930
620
DAD-150 (LH)
15.0
3.75
DN65
1060*720*1930
635
DAD-200 (LH)
20.0
5
380
DN80
1060*880*1930
875
DAD-250 (LH)
25.0
6.25
DN80
1060*1060*2000
1200
DAD-300 (LH)
34.8
7.5
DN80
1900*830*2100
1620
DAD-400 (LH)
42.8
10
DN100
2150*900*2100
1990
DAD-500 (LH)
52.8
12.5
DN100
2150*990*2150
2370
DAD-600 (LH)
69.6
15
DN125
2450*1000*2150
2880
DAD-800 (LH)
85.6
20
DN150
3000*1160*2190
3500
DAD-1000 (LH)
106
25
DN150
3000*1180*2300
4230
DAD-1200 (LH)
132
30
DN200
3200*1200*2700
5300
DAD-1600 (LH)
160
40
DN200
3800*1300*3000
6070
DAD-2000 (LH)
206
50
DN250
4200*1700*3000
7760

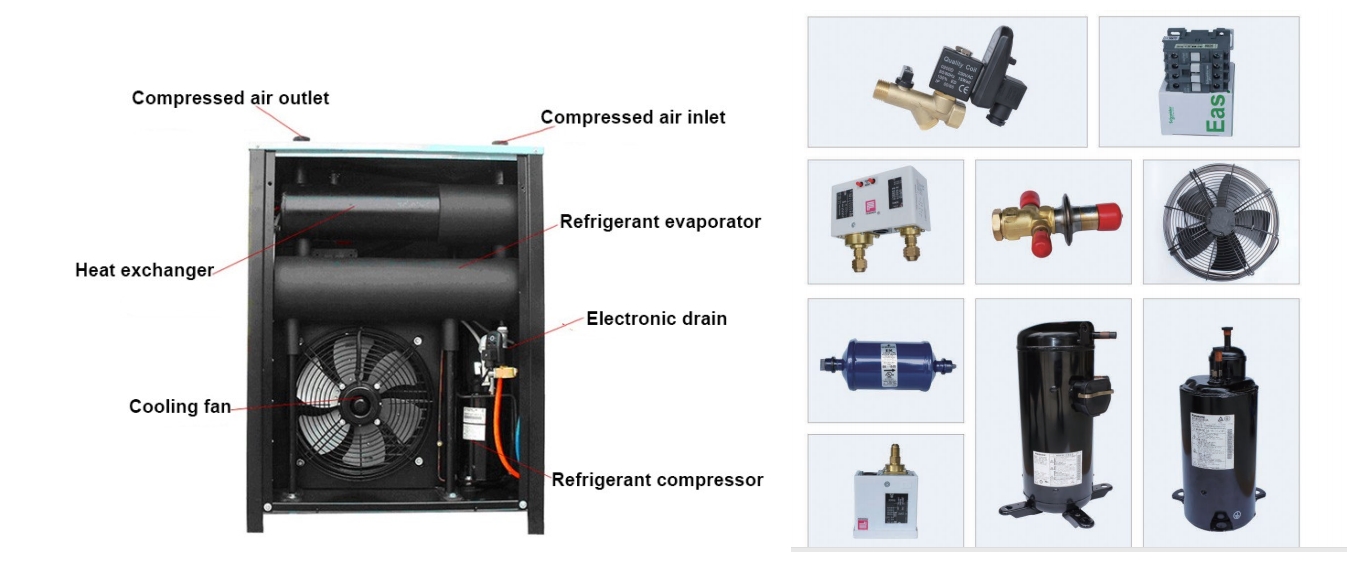

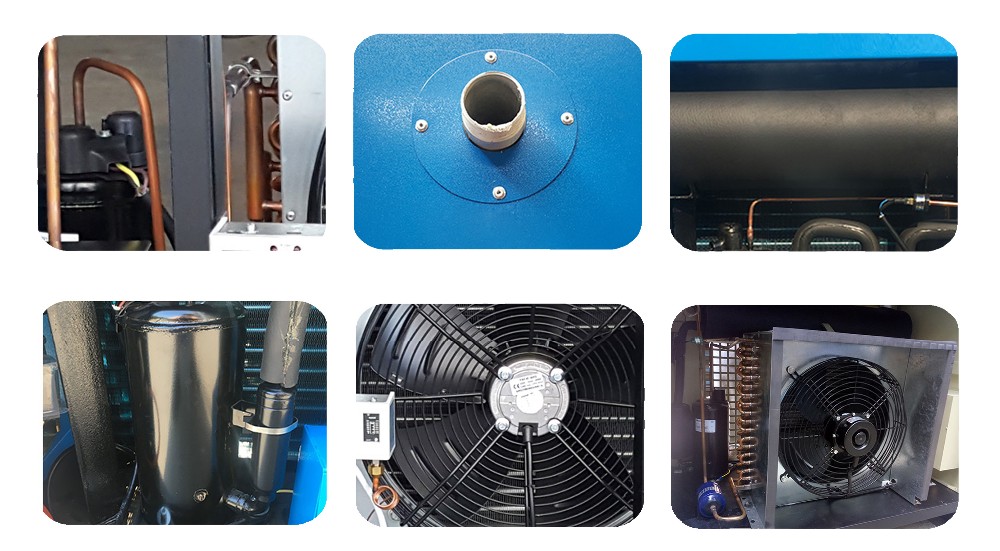

1. Imported full-sealing refrigerated compressor with super cooling system, stable operation, low noise, reliability, energy saving and long lifetime.
2. Heat exchange and condenser are make of good material. They are high efficiency for heat transmitting with smaller size but compact structure.
3.We adopt internationally advanced refrigeration control element with excellent performance.
4.Real-time display of operating parameters with intelligent electronic control panel.
5.The structure of the equipment is reasonable and easy to maintain.
Product parameters

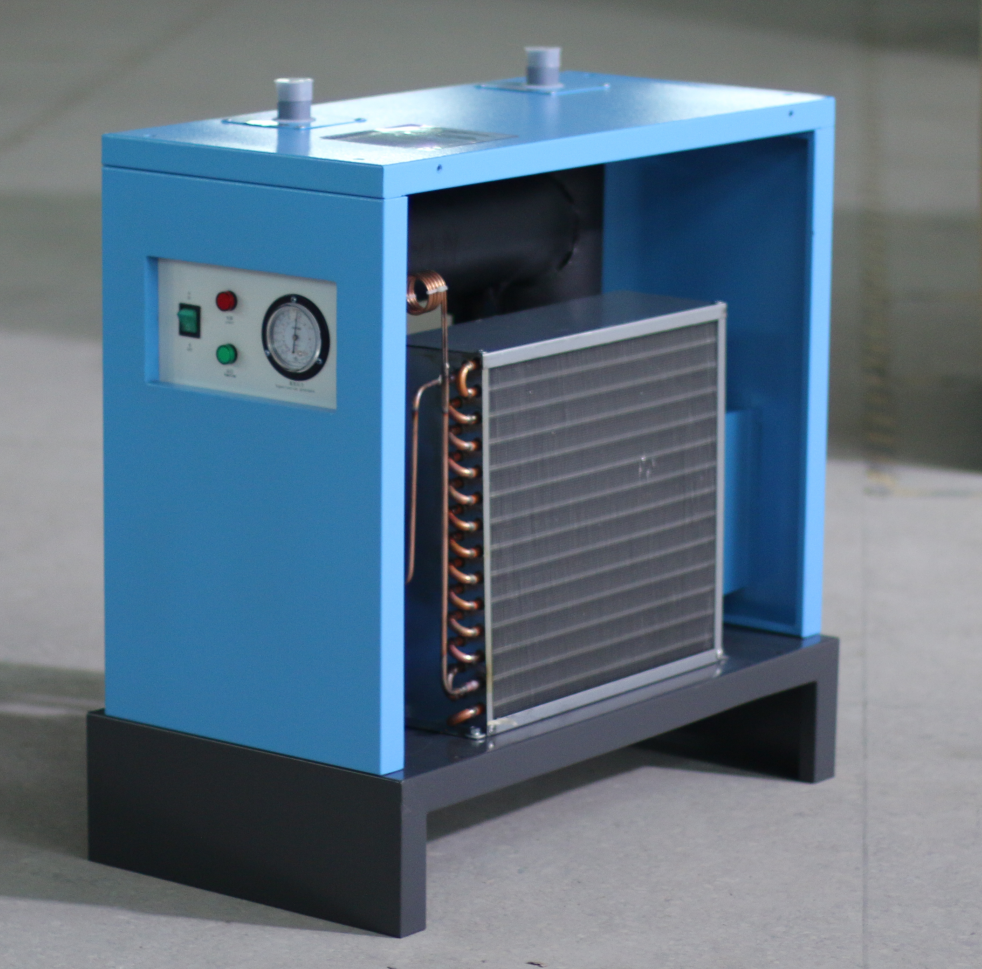

Air Cooling Air Dryer
