2/Two stage air compressor 90kw 125hp high pressure screw air compressor industrial direct air compressor

Home Products two-stage compression screw air compressor 2/Two stage air compressor 90kw 125hp hi

Description

Model Air Flow (m³/min) Motor Power Noise Outlet Diameter Dimension Weight
7bar 8bar 10bar 13bar kw dB inch W*D*H  (mm) kg
YP-10A 1.1  1.0  0.85  0.7  7.5 65 G1'' 960*680*960 280
YP-15A 1.8  1.65  1.5  1.3  11 65 G1'' 1050*830*1240 380
YP-20A 2.4  2.2  2.1  1.8  15 68 G1'' 1050*830*1240 380
YP-25A 3.1  3.0  2.7  2.3  18.5 68 G1'' 1200*830*1290 480
YP-30A 3.8  3.6  3.2  2.5  22 68 G1'' 1200*830*1290 480
YP-40A 5.3  5.0  4.3  3.6  30 69 G11/2'' 1300*1000*1540 710
YP-50A 6.6  6.2  5.7  4.6  37 69 G11/2'' 1300*1000*1540 710
YP-60A 8.0  7.7  6.9  6.0  45 70 G11/2'' 1500*1160*1700 990
YP-75A 10.5  9.8  8.7  7.3  55 70 G11/2'' 1500*1160*1700 990
YP-100A 13.6  13.0  11.3  10.1  75 72 G2'' 1700*1180*1800 1300
YP-125A 16.2  15.4  13.2  11.2  90 72 DN50 1850*1200*1900 1400
YP-150A 20.8  19.5  16.5  13.7  110 73 DN65 2250*1260*2055 1560


Product Features:

  1) High reliability

 • large air end and low speed design

 •SKF bearings whose service life for more than 50,000 hours , low wear and long service life

 • original imported driven parts: coupling

 •More than 30% heat dissipation design

  2)  Energy saving

 • The rotor adopts European and American patent screw type line design, high efficiency, energy saving

 • reasonably configure the fan , configure the minimum power on the premise of maximum efficiency

 • all standard direct drive units reduce gear configuration to lower energy loss

 • each unit is tested by the national energy efficiency laboratory, and each unit is guaranteed to reach the national level

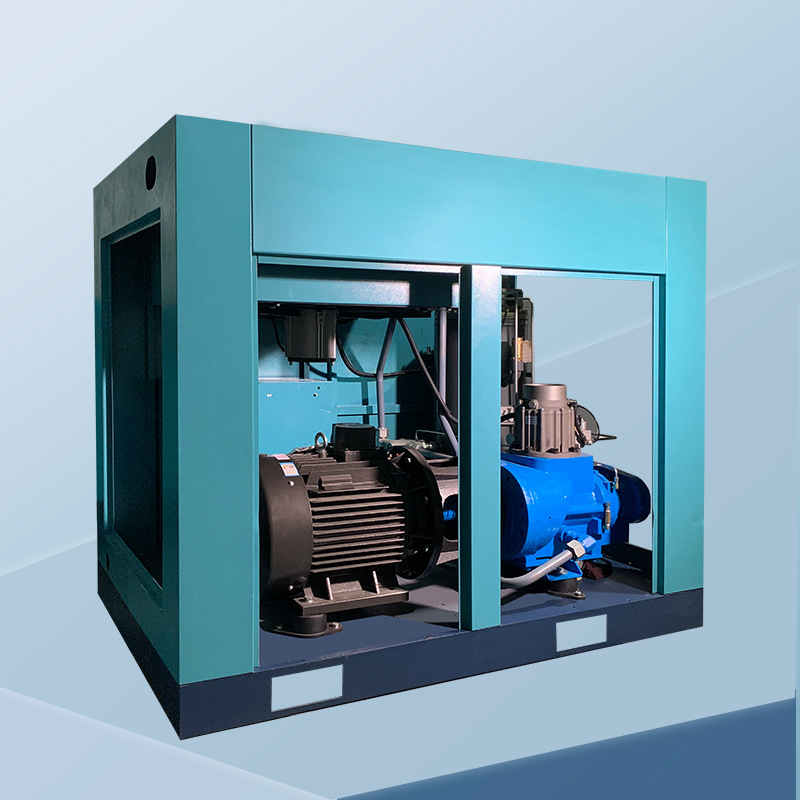

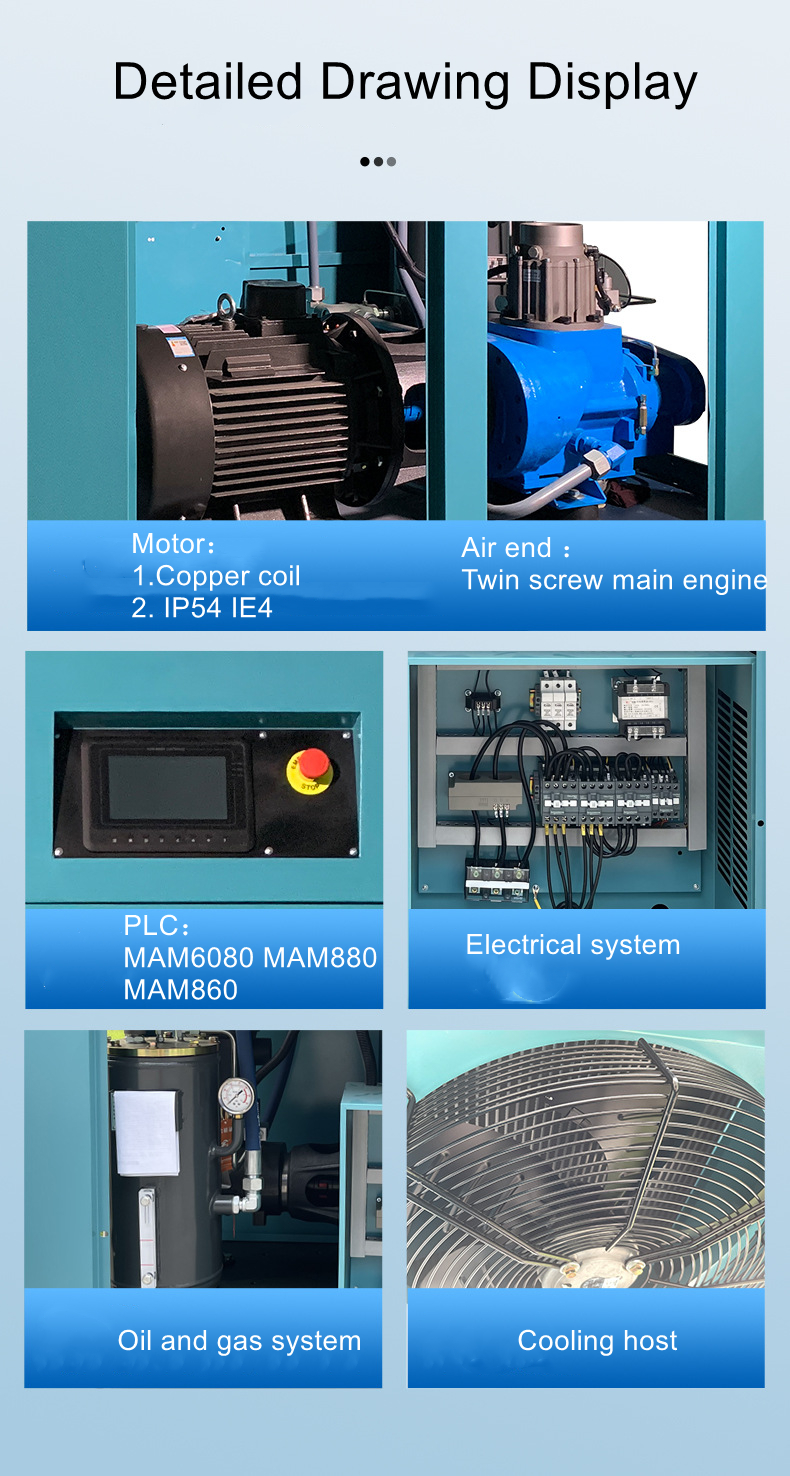

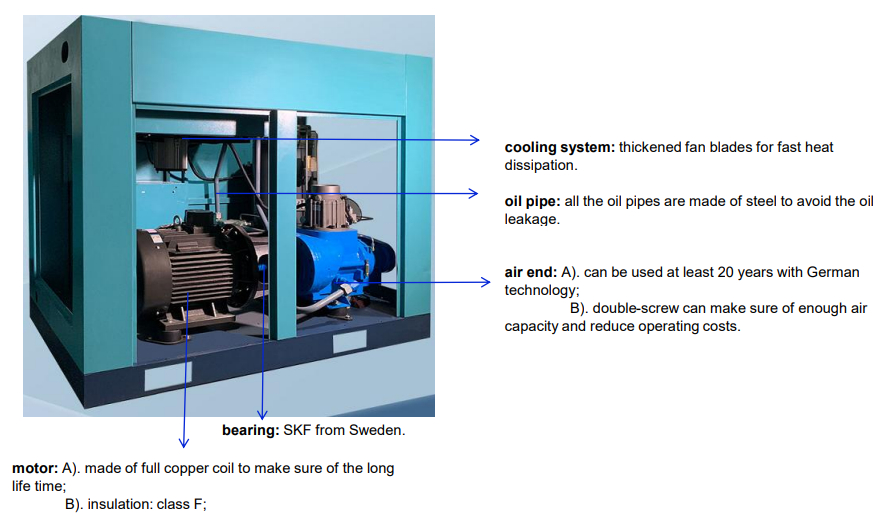

1. Air end:
 Large rotor with reasonable length-diameter ratio, large gas production, low rotating speed, small vibration, low noise, effectively play the stability of the head, the rotor material is made of wear resistant high-strength alloy steel

2. Motor:
3 phase asynchronous motor,IP54/IP55,F class insulation,SKF over-loading bearing,output efficiency up to 95%,service factor SF=1.15,Volt. And Freq. can be customized,add oil injection port at both end of bearing shell, easy maintenance

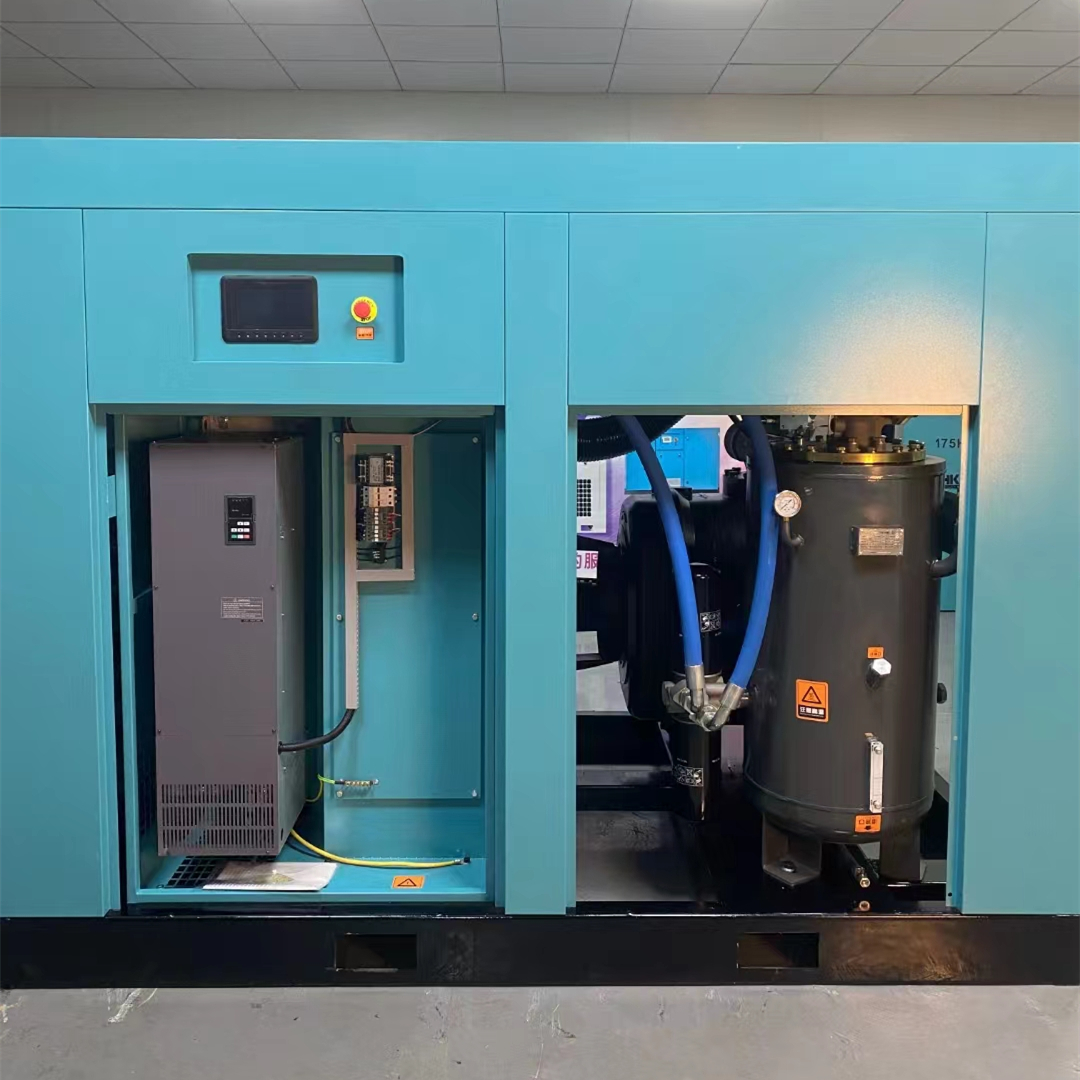

3. VSD inverter( optional ):
automatically adjust motor RMP according to real requirements, the actual power, energy -saving more than 30%,eliminate the peak current

4.High power cooling fan:
independent external motor which is not to be burn out easily,durable high heat dissipation efficiency ensure 24 hours continuous operation in high temperature and humidity environment

5.Cooler :
air cooler/ water cooler,high efficiency ,low noise,high quality aluminum material ,add axial flow fan, ensure perfect cooling effect

6.Air filter:
 two stage dust removal and filtering system with efficiency of up to 99.9% even in heavy-dust environment

7.oil filter
high efficiency oil filter removes lubricant magazine ensure longer working life and save maintenance cost

8.Intake valve
According the actual need, the gas can be automatically adjusted to reduce the operation cost

9.vibration-proof pressure gauge:
accurately display the pressure value of the air compressor tanker, convenient to view and adjust to meet different work needs

10.built -in soundproof cotton
inner sound-absorbing cotton .effectively reduce the noise machines operation, low noise little vibration, sounds as low as 50db

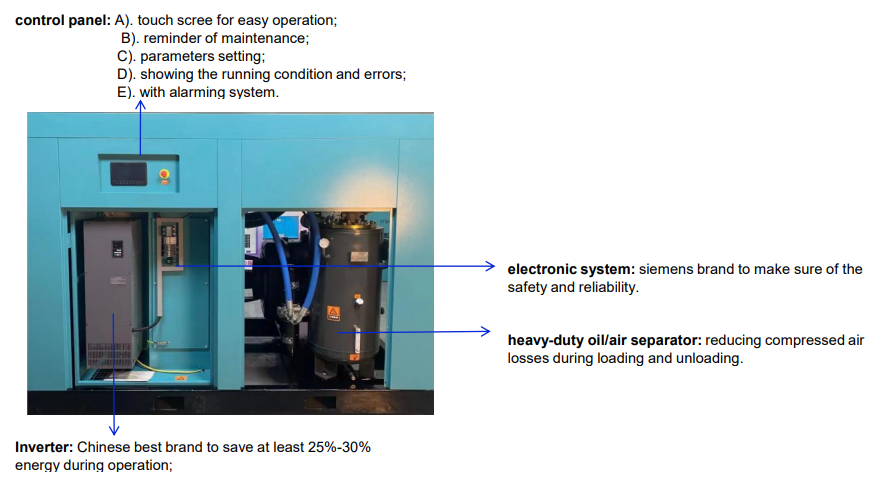

11. Intelligent PLC touch screen controller
simple operation, clear operation status, 24 hours for you to work
