Description
Product description
Features:
1. driven type: Direct driven;
2. cooling method: air cooling;
3. imported air end with high efficiency;
4. bearing: SKF;
5. motor protection: IP54/55;
6. insulation class: F;
7. noise: 68dB;
8. exhausting oil content: ＜2ppm；
9. voltage: 380/220/415V;
10. air pressure: 7/8/10/13bar;
11. air capacity: 2.5-3.8 m³/min.
Advantages
1 . Air end with high-efficiency
2. Double Screw with low noise, Super Silenced Enclosure

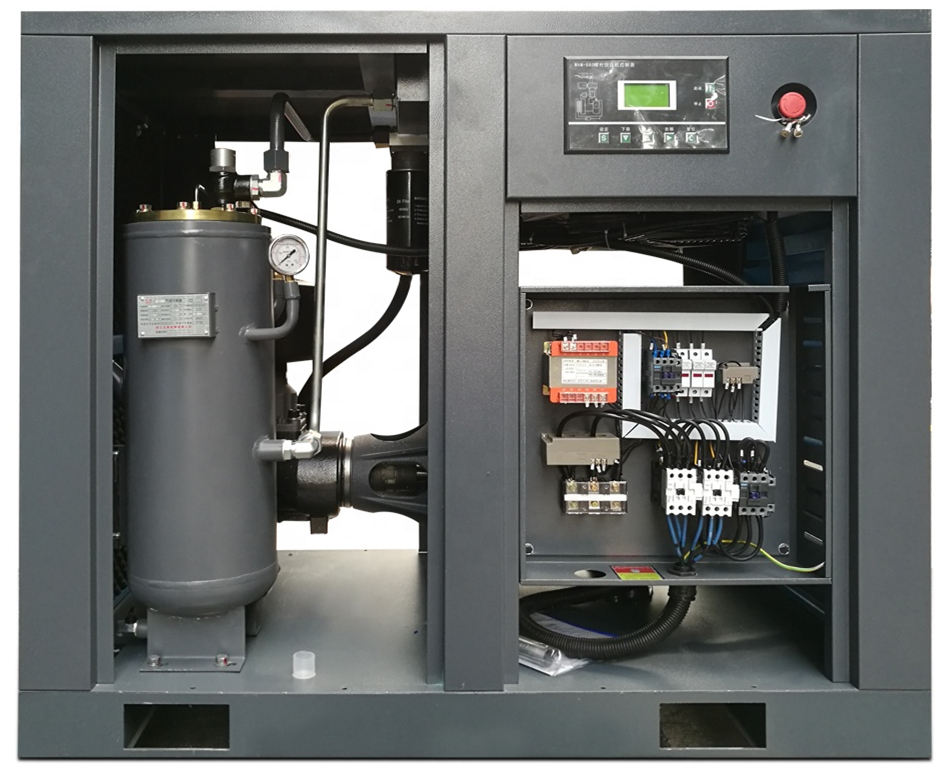

3. Elegant compact design. Fully open access door to inner parts for easy service.
4. 100% Continuous duty operation. Load/No Load operation
5. High quality CE Certificate industrial electric motors. ISO,CE,UL Certificate
6. Easy to use and read LCD control panel
7. High temperature, high pressure and anti-rotation shutdown
8. Energy efficient operation
9. 5 micron, water-resistant air filtration material
10. 2 year full machine warranty,5years air end warranty.
11. Supply the machine with different working voltage according to customer's request,
such as:
220Volt,single phase,60hz/50hz
220Volt,3 phase,60hz / 50hz
380Volt,3phase,50hz
440Volt,3phase,50hz
380Volt,3phase,60hz
We offer free pipe and valves for installation and installation diagram
Technical Specifications of screw air compressor
| Model | Air Flow (m³/min) | Motor Power | Noise | Outlet Diameter | Dimension | Weight | |||||
| 7bar | 8bar | 10bar | 13bar | kw | dB | inch | W*D*H (mm) | kg | |||
| YD-7.5A | 1.0 | 0.8 | 0.5 | 0.4 | 5.5 | 65 | G3/4'' | 780*680*800 | 300 | ||
| YD-10A | 1.1 | 1.0 | 0.85 | 0.7 | 7.5 | 65 | G3/4'' | 780*680*800 | 320 | ||
| YD-15A | 1.8 | 1.65 | 1.5 | 1.3 | 11 | 65 | G3/4'' | 1100*800*980 | 400 | ||
| YD-20A | 2.4 | 2.2 | 2.1 | 1.8 | 15 | 68 | G3/4'' | 1100*800*980 | 430 | ||
| YD-25A | 3.1 | 3.0 | 2.7 | 2.3 | 18.5 | 68 | G1'' | 1250*870*1180 | 590 | ||
| YD-30A | 3.8 | 3.6 | 3.2 | 2.5 | 22 | 68 | G1'' | 1250*870*1180 | 650 | ||
| YD-40A | 5.3 | 5.0 | 4.3 | 3.6 | 30 | 69 | G1'' | 1250*870*1180 | 750 | ||
| YD-50A | 6.6 | 6.2 | 5.7 | 4.6 | 37 | 69 | G11/2'' | 1540*950*1290 | 880 | ||
| YD-60A | 8.0 | 7.7 | 6.9 | 6.0 | 45 | 70 | G11/2'' | 1540*950*1290 | 1000 | ||
| YD-75A/W | 10.5 | 9.8 | 8.7 | 7.3 | 55 | 70 | G2'' | 1600*1150*1420 | 1500 | ||
| YD-100A/W | 13.6 | 13.0 | 11.3 | 10.1 | 75 | 72 | G2'' | 2010*1260*1460 | 1900 | ||
| YD-125A/W | 16.2 | 15.4 | 13.2 | 11.2 | 90 | 72 | DN50 | 2010*1260*1460 | 2500 | ||
| YD-150A/W | 20.8 | 19.5 | 16.5 | 13.7 | 110 | 73 | DN65 | 2300*1600*1790 | 2800 | ||
| YD-175A/W | 24.0 | 23.0 | 20.0 | 15.5 | 132 | 74 | DN65 | 2300*1600*1790 | 3000 | ||
| YD-220A/W | 27.8 | 26.0 | 23.5 | 19.5 | 160 | 75 | DN80 | 2500*1700*1850 | 3500 | ||
| YD-250A/W | 32.5 | 31.0 | 26.0 | 21.6 | 185 | 76 | DN80 | 2500*1700*1850 | 3800 | ||
| YD-270A/W | 34.5 | 33.0 | 28.0 | 23.5 | 200 | 77 | DN80 | 2500*1700*1850 | 4200 | ||
| YD-300A/W | 38.0 | 36.5 | 32.0 | 27.0 | 220 | 78 | DN100 | 2800*1900*1950 | 4800 | ||
| YD-350A/W | 43.0 | 40.5 | 36.5 | 32.0 | 250 | 80 | DN100 | 2800*1900*1950 | 5200 | ||
| YD-500A/W | 76.0 | 75.3 | 65.4 | 59.0 | 400 | 83 | DN125 | 4200*2200*2240 | 8200 | ||
| Remarks: | |||||||||||
| 1. "A" represents air cooling, and "W" represents water cooling; | |||||||||||
| 2. working ambinent temperature: -5℃-45℃; | |||||||||||
| 3. exhausting air temperature ≤ working ambinent temperature +10℃-15℃; | |||||||||||
| 4. starting mode: Y-△; | |||||||||||
| 5. exhausting oil content: ＜3ppm; | |||||||||||
| 6. certificate: CE/ISO9001/ASME; | |||||||||||
| 7. voltage: 380V/220V/400V/440V/415V | |||||||||||
Our Factory:
1. Starting from 2001;
2. With 8,000sq meters workshop;
3. With 6 production lines;
4. 500pcs production capacity per month.
Our Certificates:
1. CE;
2. SGS;
3. ISO9001;
4. 12 patents for screw compressor.
Our screw air compressors are currently exported to 132 countries and regions around the world. The machine runs stably and reliably, and is highly praised and evaluated by customers.
Pre-factory quality control process:
1. Installation inspection of the whole air compressor: check and confirm the whole machine according to the operation instructions and quality control standards. Main inspection items: 1）Confirm the nose and motor nameplates; 2）Check whether there is oil leakage in the pipeline and oil circuit of the air compressor; 3）the air compressor machine screw locking inspection..
2. air compressor factory test machine, heat engine: test whether the air compressor operation parameters meet the requirements of customers, including voltage, current, working pressure, exhaust volume, etc.Air compressor factory before 48 hours of thermal test, stability confirmation.
3. 24 hours online after-sales service, one-to-one online guidance installation, debugging, troubleshooting.
1. Screw air compressor packaging is divided into three layers from inside to outside:
1) The first layer of protection: spray paint on the surface of the machine to protect the surface of the machine. The fouling pull film is wrapped around the surface of the machine to protect the surface of the paint.
2) The second layer of protection: anti-collision protection of the machine. On the basis of lacquer protection, anti-collision buffer cotton is used to protect the machine against collision.
3) The third layer of protection: the case adopts the overall packaging of the non-fumigation wooden case to protect the machine during transportation.
