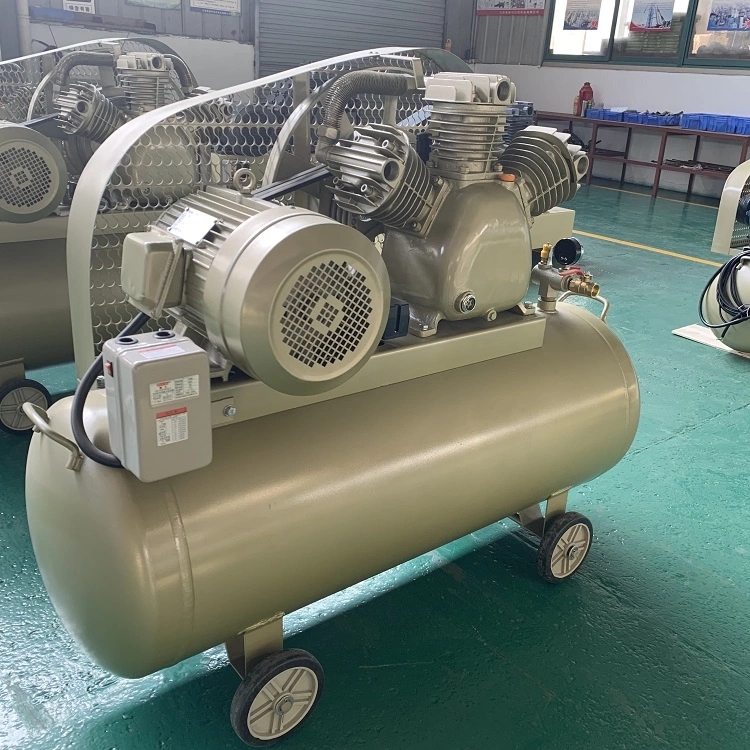

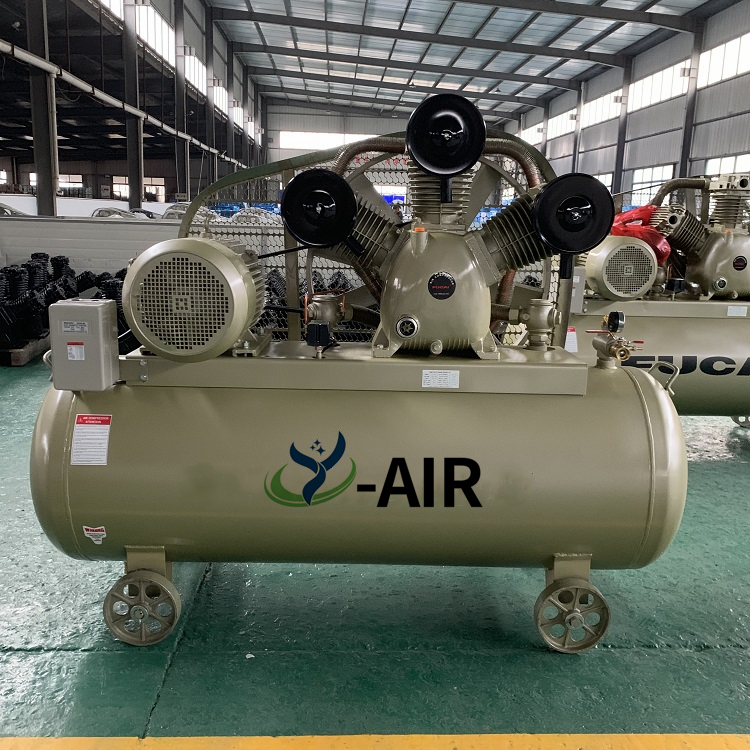

5.5kw-15kw 7-30bar Silent Piston Air Compressor
Features of Y-Air silent psiton air compressor
Swedish stainless steel valves for long life.
Designed to continuous operation.
Low pump RPM rated for heavy-duty use.
Splash lubrication & precised balanced cast-iron flywheel.
Cast-iron valve plate with fine grinding.
High-accuracy machined components.

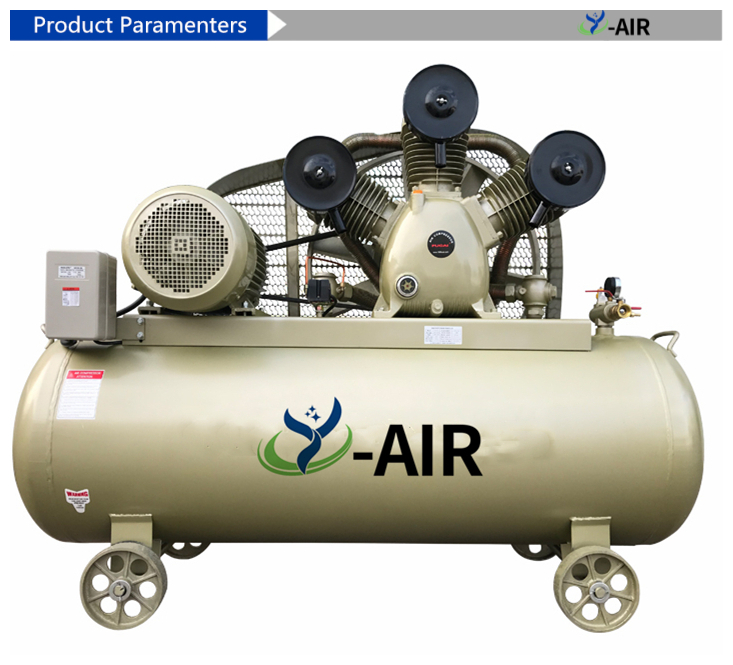

| 12bar series | |||||||||||
| Model | Motor Power | Piston variable displacement | Exhaust volume | Exhaust pressure | Cylinder | Rotate speed of air compressor | Volume of gas storage tank | Packing dimension | 283 | stroke | |
| kw/hp | L/min | L/min | bar | diameter*piece | rpm | L | L*W*H(cm) | kg | mm | ||
| YH-7.5A | 5.5/7.5 | 736 | 600 | 12 | 80*2/65*1 | 1220 | 150 | 142*64*118 | 283 | 60 | |
| YH-10A | 7.5/10 | 1081 | 800 | 12 | 100*2/80*1 | 860 | 250 | 174*68*126 | 342 | 80 | |
| YH-15A | 11 15 | 1357 | 1000 | 12 | 100*2/80*1 | 1080 | 250 | 174*77*126 | 422 | 80 | |
| 10/25/30bar series | |||||||||||
| Model | Motor Power | Piston variable displacement | Exhaust volume | Exhaust pressure | Cylinder | Rotate speed of air compressor | Volume of gas storage tank | Packing dimension | Gross weight | stroke | |
| kw/hp | L/min | L/min | bar | diameter*piece | rpm | L | L*W*H(cm) | kg | mm | ||
| YH-10A-1 | 7.5/10 | 830 | 600 | 25 | 90*2/51*1 | 870 | 250 | 177*71*120 | 410 | 75 | |
| YH-10A-2 | 7.5/10 | 811 | 550 | 30 | 90*2/51*1 | 850 | 250 | 177*71*120 | 410 | 75 | |
| YH-10A-3 | 7.5/10 | 1169 | 1050 | 10 | 100*2/80*1 | 1050 | 250 | 174*68*126 | 352 | 80 | |
Packing of piston air compressor
Package : 1pc each plastic film / Wood case
Shipment A: Full Container 20ft, 40ft, 40HQ, 45ft.
Shipment B: No meet Container, but less small qty, advise 20ft.
Shipment C: Small qty, ship by Bulk,
Shipment D: Customer have other factory 's products with container in China, to send our products with this container together.
Our Services of piston type air compressor
PRE-SERVICE
1.Customer consultation
To ensure the first response to customer needs, Yunshun company specially allocates a sales service department to provide customers with the fastest and most preofessional consultation greenway through diversified communication channels such as telephone, mail online and Wechat etc.
2. Customized service
As the technology develops rapidly, Yunshun Company innovatively integrates technology, products and services as a whole with its forward-looking concept and contermporary technology. We can provide customers with the best solution of performance-price ration according to their actual needs.
SALES SERVICE
1.Installation and Adjustment
Yunshun professional technical engineers will provide professional and fast on-site installation and commissioning services to ensure that the equipment purchased by customers can be installed in place and run smoothly. Customers who have no door-to-door installation requirment can call our 24-hour service hotline to ensure the smooth use of the equipment whenever they have any questions about installation and use.
2.Training
According to the specific needs of customers, Yunshun Company provides all-round training guidance for equipment use, including introduction of equipment performance characteristics, matters needing attention in equipment operation, daily use and maintenance of equipment and other all-round guidance training.
AFTER-SALES SERVICE
1.Maintenance and Replacement
If the produce fails during the warranty period, Yunshun will provide customers with the service of repairing or replacing the products according to the situation. Eigher way, Yunshun will provide you with the best and most professional service.
2. Client Review
Through regular and irregular client review, the sales service team of Yunshun Company maintains long-term follow-up service with customers and summarizes feedback monthly to solve customers' problem at the first time according to the operation status of products,customers' suggestions and their attitude to our service and cooperation.
